SNB-F10-13R/L - bad drawing?

Aircraft Sonex-B
1

I just sent this over to Sonex Tech support, but maybe someone here knows the answer and I can keep working this weekend:

Hey guys,

I’m working on my Aft Lower Cabin Details and have a question for you.

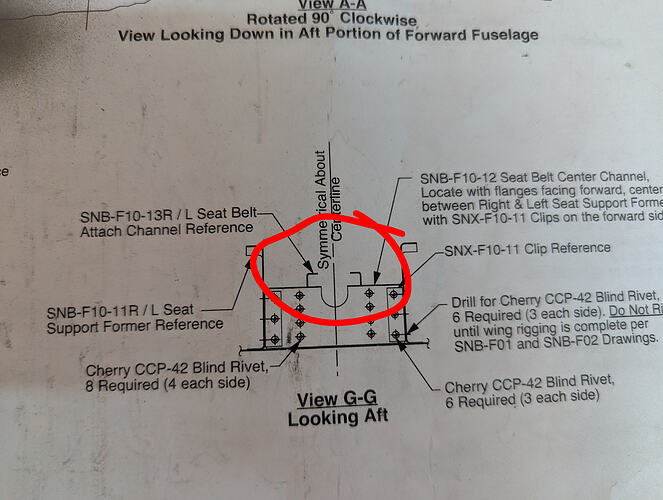

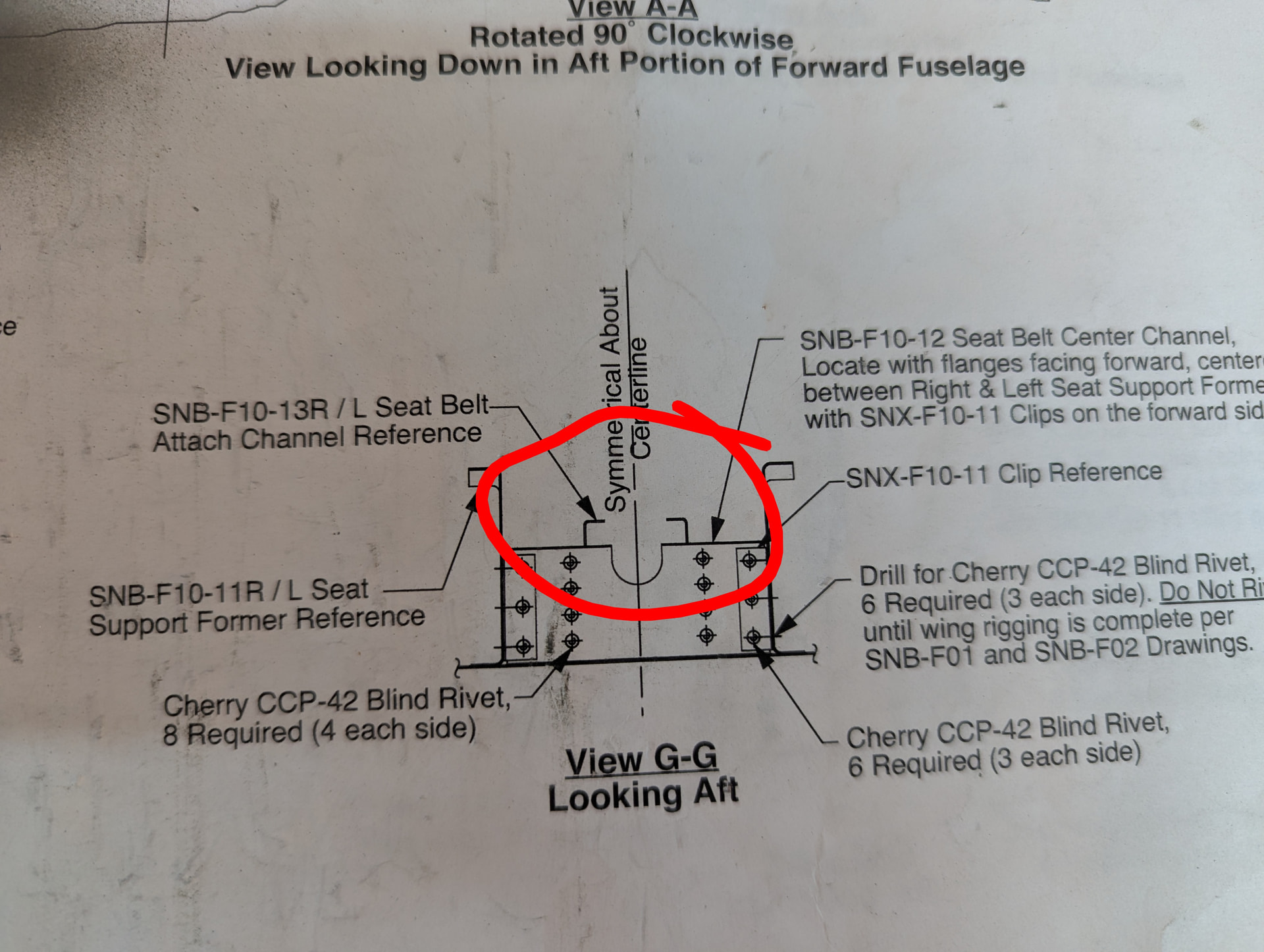

The drawing shows the SNB-F10-13R/L proud of the top of SNB-F10-12:

PXL_20260717_145941852~3
PXL_20260717_145941852~31920×1446 383 KB

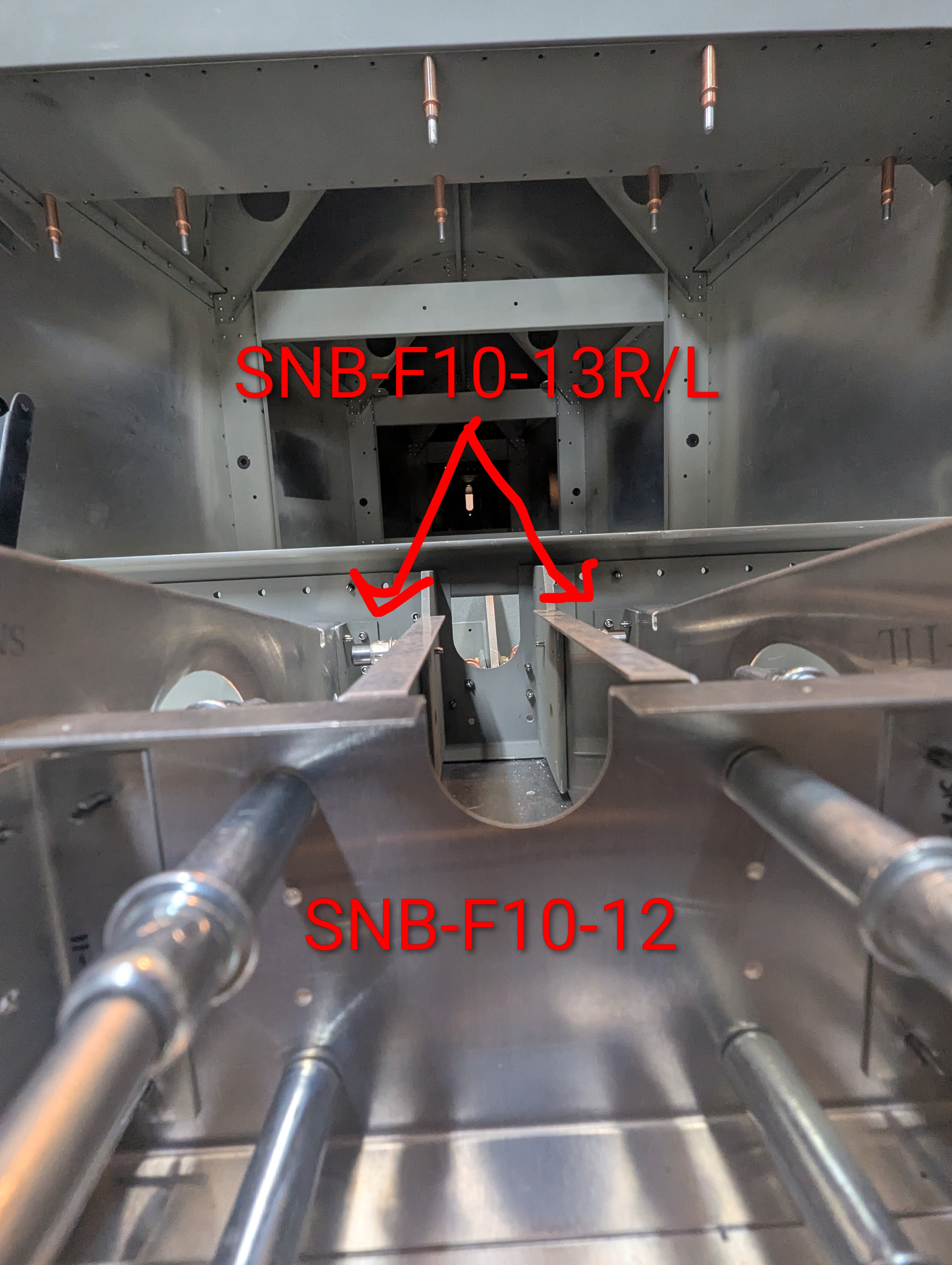

However, the actual parts are flush in the top:

PXL_20260717_150052495~2
PXL_20260717_150052495~21920×2550 713 KB

Am I doing something wrong (e.g. should I move the -13R/L up in the pre-drilled holes, skipping the bottom one)? Or is this just a part where the drawing doesn’t match properly?

Let me know,

Dan

Anyone else with a B model have the same issue?

2

Tech support replied quickly. The drawing is incorrect. Mentioning it here in case anyone else is looking for the same question.

2 Likes
