Riveting the stabilators skin
Posted: Tue Mar 24, 2020 10:46 am
by Carlos Trigo
Guys
In the XENOS drawing indicating the installation of the Stabilator skins there are indications saying that some rivets are only installed after the installation of the Stabilator on the Fuselage.
But it is not clear which rivets are those?
Does anyone remember which exactly are the rivets that cannot be installed before the installation of the Stabilator on the Fuselage?
I ask this because I still don’t have the Fuselage and I want to conclude as much as possible the Stabilators.
Thanks
Carlos
Re: Riveting the stabilators skin
Posted: Tue Mar 24, 2020 11:01 am
by Bryan Cotton
Carlos,
Look carefully at the print. Some of the callouts will be for rivets, and some for holes. Assuming the Xenos is like the Waiex, the big Y fitting is riveted to the fuselage, and the stabilizer is riveted to the big Y fitting. The ruddervator hinges go on last. This is by memory from years ago, so use my recollection to help interpret the plans.
Re: Riveting the stabilators skin
Posted: Tue Mar 24, 2020 11:18 am
by Rynoth
It’s definitely in the plans in the details somewhere. Again assuming it’s like the Waiex tail, basically you don’t want rivets where the Y-fitting will interface with the stabilators.

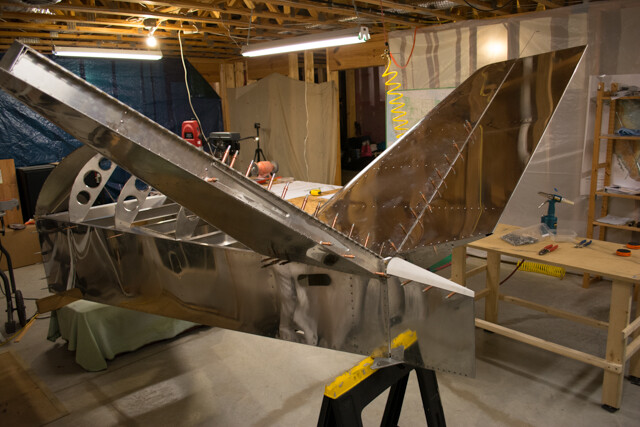

If you look closely in this pic you can see where my y-fitting fits (and isn’t yet riveted), as well as the piano hinge/skin rivets in that area that would interfere with pulling the y-fitting rivets.
Riveting the stabilators skin
Posted: Tue Mar 24, 2020 11:47 am
by Carlos Trigo
Bryan Cotton wrote:Carlos,
Look carefully at the print. Some of the callouts will be for rivets, and some for holes. Assuming the Xenos is like the Waiex, the big Y fitting is riveted to the fuselage, and the stabilizer is riveted to the big Y fitting. The ruddervator hinges go on last. This is by memory from years ago, so use my recollection to help interpret the plans.
Thanks Bryan
I will try to read it more carefully, but when I read it, there were 2 instructions that seemed to be contradictory.
Riveting the stabilators skin
Posted: Tue Mar 24, 2020 11:52 am
by Carlos Trigo
Rynoth wrote:It’s definitely in the plans in the details somewhere. Again assuming it’s like the Waiex tail, basically you don’t want rivets where the Y-fitting will interface with the stabilators.
If you look closely in this pic you can see where my y-fitting fits (and isn’t yet riveted), as well as the piano hinge/skin rivets in that area that would interfere with pulling the y-fitting rivets.
Thanks Rynoth
The picture is very useful.
So the y-fitting (still not known to me, I only have the tail plans…) is fixed to the aft spar of the Stabilator, right?
Therefore it seems that the stabilator skin rivets which cannot be installed now are the ones that grip the skin to the aft spar, upper and bottom, right?
Thanks
Carlos
Re: Riveting the stabilators skin
Posted: Tue Mar 24, 2020 1:19 pm
by Bryan Cotton

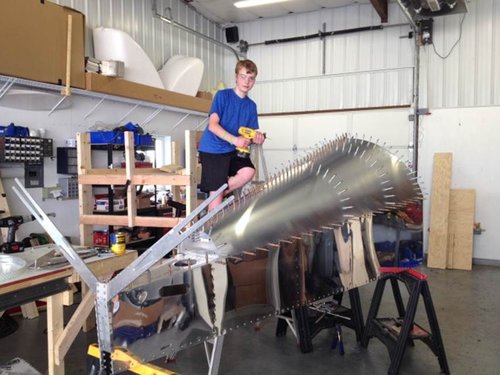

Here is a good picture of the Y fittings. This is one of my favorite pictures from my build.
Re: Riveting the stabilators skin
Posted: Tue Mar 24, 2020 6:34 pm
by Rynoth
Carlos Trigo wrote:
So the y-fitting (still not known to me, I only have the tail plans…) is fixed to the aft spar of the Stabilator, right?Therefore it seems that the stabilator skin rivets which cannot be installed now are the ones that grip the skin to the aft spar, upper and bottom, right?
Correct, for the Waiex anyways. One does not rivet the aft spar where the y-fitting will attach, along with the skin rivets along the aft spar in the same area.
I don’t recall this being at all ambiguous in the Waiex plans, but I’ve never seen the Xenos plans. If it does read the same as the Waiex plans, this may be an opportunity to learn how to read and understand the plans going forward (I’m not being sarcastic, I had many “aha” moments when I realized what the plans were trying to tell me, and this helped for the rest of the build.)
Riveting the stabilators skin
Posted: Wed Mar 25, 2020 3:56 pm
by Carlos Trigo
Bryan Cotton wrote:Here is a good picture of the Y fittings. This is one of my favorite pictures from my build.
Tailcone milestone.jpg
Bryan
The picture didn’t come through, at least for me…
Carlos
Riveting the stabilators skin
Posted: Wed Mar 25, 2020 4:02 pm
by Carlos Trigo
Rynoth wrote:
I don’t recall this being at all ambiguous in the Waiex plans, but I’ve never seen the Xenos plans. If it does read the same as the Waiex plans, this may be an opportunity to learn how to read and understand the plans going forward (I’m not being sarcastic, I had many “aha” moments when I realized what the plans were trying to tell me, and this helped for the rest of the build.)
No problem, Rynoth, since I am more used to the Van’s RV plans (which so far seem to be better than the Sonex’s, mainly because the RV plans have written instructions next to the drawings), I am still in the learning curve of the Sonex plans …
Cheers
Carlos
