Onex Toe Brakes
Posted: Wed Mar 20, 2024 11:19 pm
by Wanttobuild25
I just purchased a Onex that will be converted to toe brakes. I’ve seen some photos depicting the conversion and am wondering if any detail drawings/part numbers are available anywhere.
Thanks for any input!
Jeff Ackland
Re: Onex Toe Brakes
Posted: Sun Mar 24, 2024 10:51 am
by gcm52

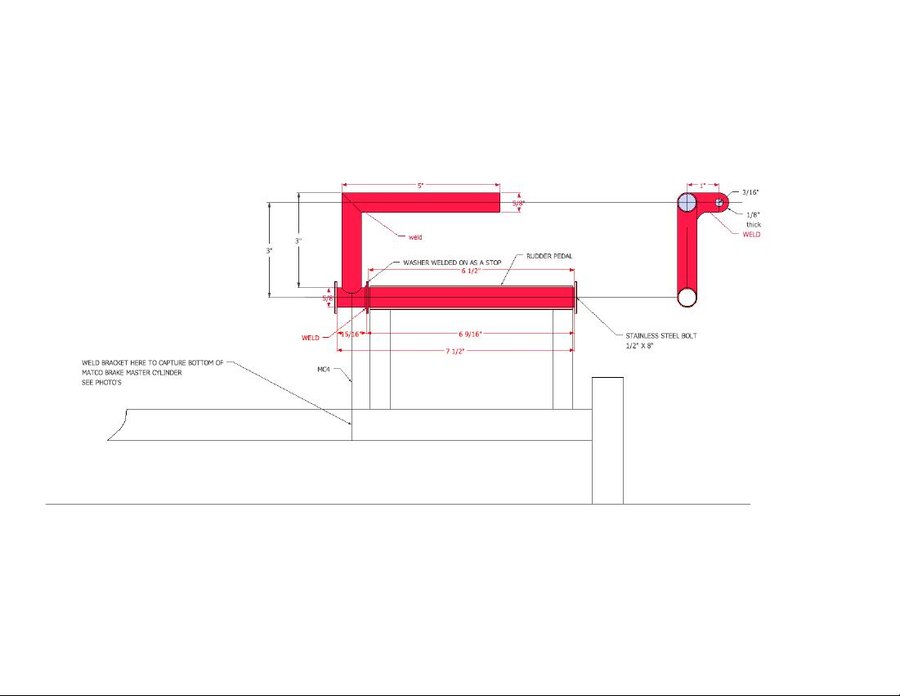

Attached is a drawing i used to fabricate toe brakes for my Onex. I got them from another Onex builder, Mike Turrell. The toe brakes worked great for both Mike and I. We both used the Matco MCMC-4 master cylinders with this setup
Re: Onex Toe Brakes
Posted: Sun Mar 24, 2024 4:47 pm
by Mike53
gcm52 wrote:
Onex Toe Brakes.jpg
Attached is a drawing i used to fabricate toe brakes for my Onex. I got them from another Onex builder, Mike Turrell. The toe brakes worked great for both Mike and I. We both used the Matco MCMC-4 master cylinders with this setup
It should be noted that I reworked the toe brakes so that the pivot was at the bottom of the toe brake where it encases the rudder . Pics can be found here.http://www.onexmike.org/hydraulic–toe-brakes.html. for the before and after. the improved geometry gives far higher psi leverage .
