Installing the turtle deck
Posted: Sat Jan 30, 2021 4:05 pm
by Carlos Trigo
Guys
The XENOS plans (and probably also other Sonex models’) tell you to first rivet both turtle deck skins to the “dorsal spine” channel assembly, then install this “Skin assembly” over the tail cone box, and only after that you go to install the #2 to #5 left and right formers.
Unless you are able to crawl inside the tail cone, I don’t see how to locate, drill and cleco those intermediate formers.
Everybody did the turtle deck like the plans say?
If yes, how did you reach inside the tail cone to install those formers?
If not, did you first install the formers in the tail cone box and only after you installed the turtle deck skins?
Any information and tips is welcome.
Thanks
Carlos
XENOS-B
Re: Installing the turtle deck
Posted: Sat Jan 30, 2021 4:57 pm
by NWade
Carlos - Did you already rivet on the fuselage floor skins? On Sonex/Waiex models it’s common practice to wait and rivet those on at the very end. By cleco’ing the skins in place when needed, and removing them for any work inside the aircraft, you make it much easier to do things like install the turtledeck formers, shoulder harnesses, instruments & wiring, and many other components.
Take care,
—Noel
Sonex #1339
Re: Installing the turtle deck
Posted: Sat Jan 30, 2021 7:33 pm
by racaldwell
Carlos,
I did just what Noel said. Access is needed back there so leave the bottom skin just clecoed.
I just riveted mine last month so I could paint the fuselage excepting the forward bottom skin. The last work back there was making a transponder antenea mount.
I did crawl back there to buck the rivets. That was torture.
Rick Caldwell
Xenso 0057
Installing the turtle deck
Posted: Mon Feb 01, 2021 10:17 am
by Carlos Trigo
NWade wrote:Carlos - Did you already rivet on the fuselage floor skins? On Sonex/Waiex models it’s common practice to wait and rivet those on at the very end. By cleco’ing the skins in place when needed, and removing them for any work inside the aircraft, you make it much easier to do things like install the turtledeck formers, shoulder harnesses, instruments & wiring, and many other components.
Take care,
—Noel
Sonex #1339
No, I still didn’t rivet the bottom skins, just because I was previously warned to leave that riveting for the later possible, for various reasons.
Even though I know that would leave me with some access to the tail cone guts, I am a 6ft 1”, 250 lb guy, therefore I am looking for another way to skin this cat.
Do you consider wrong to test the installation of the “spinal cord” channel with the formers, and then adding the turtle deck skins?
Carlos
XENOS-B #020
Re: Installing the turtle deck
Posted: Mon Feb 01, 2021 11:47 am
by Bryan Cotton
Carlos,
This is a great task to have a helper. We drew blue lines on the former flanges. I held the formers tight against the skin from underneath, my son centered the line in the hole, drilled and clecoed. I don’t think you want to do this off the airplane, if that is what you are asking.
Installing the turtle deck
Posted: Mon Feb 01, 2021 6:42 pm
by Carlos Trigo
Bryan Cotton wrote:Carlos,
This is a great task to have a helper. We drew blue lines on the former flanges. I held the formers tight against the skin from underneath, my son centered the line in the hole, drilled and clecoed. I don’t think you want to do this off the airplane, if that is what you are asking.
Hi Bryan
I recognise that I was not totally clear in my question.
This is what I mean:
Instead of riveting the backbone channel to the turtle deck skins, and after that install this assembly to the tail cone box, and lastly go inside and install the formers (this is the construction order indicated in the plans), is there any problem in firstly install all the internal structure (backbone channel plus the formers) in the tail cone box, and lastly add the turtle deck skins?
Thanks
Carlos
Re: Installing the turtle deck
Posted: Tue Feb 02, 2021 9:54 am
by racaldwell
Hi Carlos,
I do not see any advantage of your proposal. You still have to get inside (from the bottom since it is open) to align the formers, rebend them as to get the best fit, then make shims for the areas that still don’t fit tight to the skin. Here is a picture of the shims I added on one formers. Most formers required no shims, just slight adjustments.
Rick Caldwell
Xenos 0057
Re: Installing the turtle deck
Posted: Tue Feb 02, 2021 10:18 am
by Bryan Cotton
Carlos,
I don’t think the parts are precise enough to get a good fit that way. There is some variability which is taken care of by the final positioning of the bulkheads.
Installing the turtle deck
Posted: Tue Feb 02, 2021 11:13 am
by Carlos Trigo
racaldwell wrote:Hi Carlos,
I do not see any advantage of your proposal. You still have to get inside (from the bottom since it is open) to align the formers, rebend them as to get the best fit, then make shims for the areas that still don’t fit tight to the skin. Here is a picture of the shims I added on one formers. Most formers required no shims, just slight adjustments.
Rick Caldwell
Xenos 0057
Hello Rick
(I’m waiting for these COVID restrictions to end to book an airline ticket over the big pond - aka Atlantic ocean- to go and sneak into your Xenos with my own pair of eyes…)
The advantage of my proposal is that I am able to do all the alignment, placement, and making the holes in the formers to the tail cone box structure, and the formers with the backbone channel clips without having the skins covering the turtle deck.
Don’t forget that the formers don’t come (arrrgh…) with any pre-punched holes.

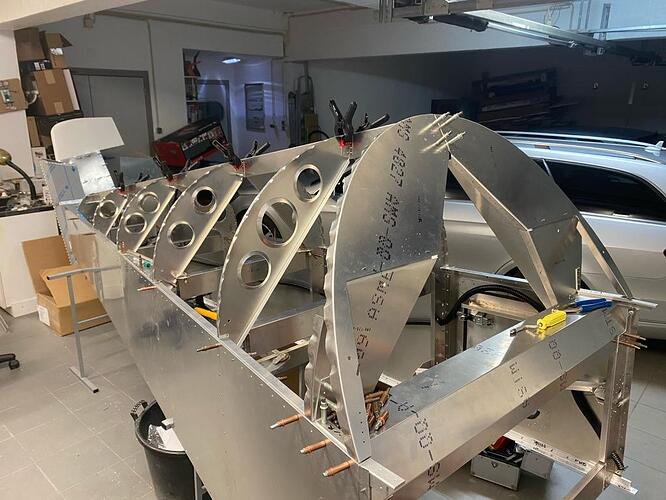

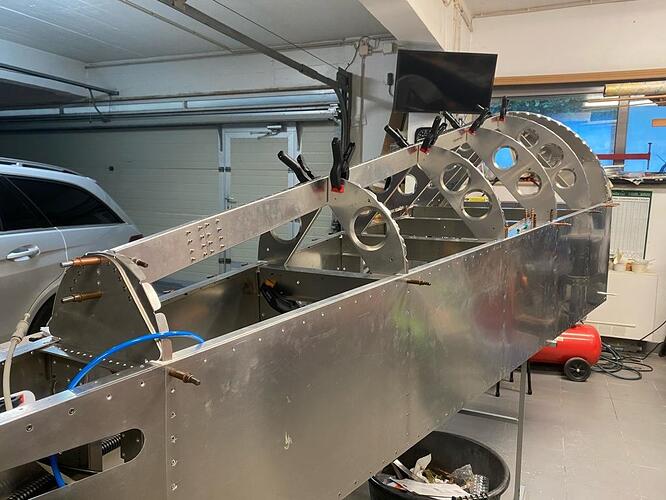

After making those holes matching the formers with the fuselage side verticals and the channel clips, I intend to put over the skins and then adapt the formers flanges to the skins, and lastly make the holes from the skins into the formers flanges.
Only these latter will need me to get inside the fuselage from the bottom.
Thanks
Carlos
Installing the turtle deck
Posted: Tue Feb 02, 2021 11:15 am
by Carlos Trigo
Bryan Cotton wrote:Carlos,
I don’t think the parts are precise enough to get a good fit that way. There is some variability which is taken care of by the final positioning of the bulkheads.
Bryan
That is indeed my fear…
Re: Installing the turtle deck
Posted: Tue Feb 02, 2021 12:39 pm
by Bryan Cotton
I know Ryan (user rynoth) did this job solo. He may have insight on how to do it if you don’t have a helper.
Installing the turtle deck
Posted: Tue Feb 02, 2021 1:45 pm
by Carlos Trigo
Well, I think I’m getting there…
Thanks everybody
Carlos
Re: Installing the turtle deck
Posted: Tue Feb 02, 2021 2:39 pm
by racaldwell
Hi Carlos,
I did this solo. I used some wood as braces to hold up one side while I handled the other side. I used ratchet straps to hold the skin in place. The one problem I had was when one side slipped out suddenly from underneath the side skin and made a crease in the turtledeck. I ended up cutting out that side portion and splicing in a new piece.
I liked being able to rivet the spline channel to the skins on the bench. I back riveted it and it came out good. I do not use pulled rivets except where I have to.
Once The pandemic is over, please come visit. This is the time of year to come to Florida. I can’t wait to go out and catch some thermals.
Rick Caldwell
Xenos 0057
