Does anyone have a sketch or drawing of preferred locations for battery box, gascolator, ignition solenoid, fuel line pass thru etc available? Jabiru 3300 planned. Any guidance is appreciated.
1 Like
I’m not sure if the B model is like the A model at the upper firewall, but I wish I had sprinkled in a few #10 nutplates behind the tank for mounting stuff I didn’t think of before.
2 Likes
It also matters if you are a taildragger or tricycle gear - they use different motor mounts - and therefore different real estate available on the firewall.
Bill
N67WX - Taildragger
2 Likes
If applicable, I have drawings and photos of what I did for my A series taildragger with Jabiru 3300.
David A.
2 Likes

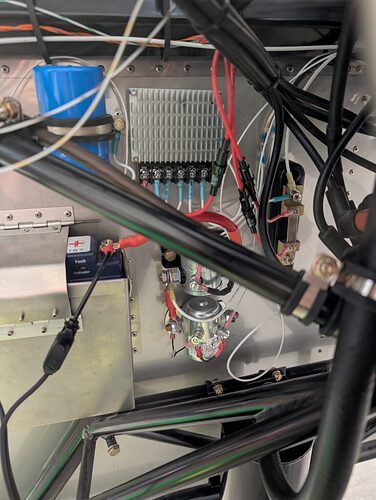

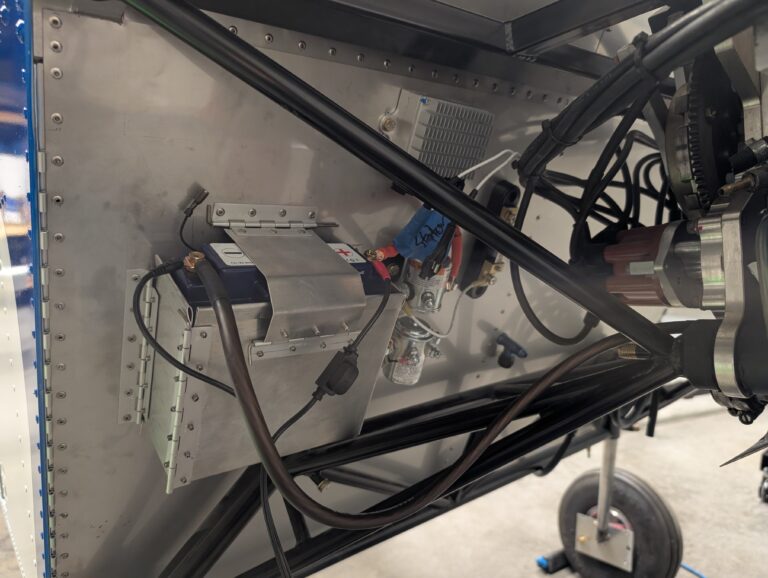

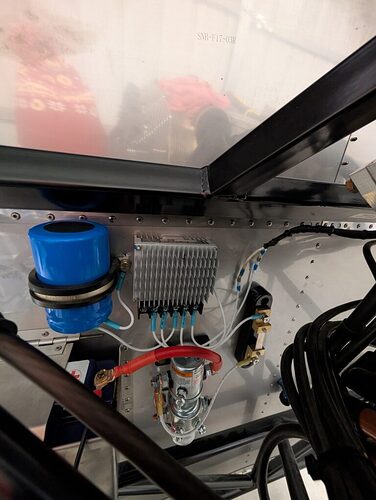

Hi CaptT. Here are some links that show how I laid out my firewall on my 3300 B model:
3 Likes
